Chronic kidney disease

Chronic kidney disease

Proteins are responsible for structure and signalling in living organisms and in every organ. Based on this consideration, it appears only logical investigate proteomic changes in the context of chronic kidney disease (CKD), aiming at identifying molecular changes associated with CKD onset and progression that can be linked to molecular pathophysiology and that could serve as more appropriate biomarkers or even as therapeutic targets. Figure 1 illustrates this concept of how early diagnosis and/or prognosis of diseases, based on proteomic changes involved in pathology, improves chances for better outcomes for patients.

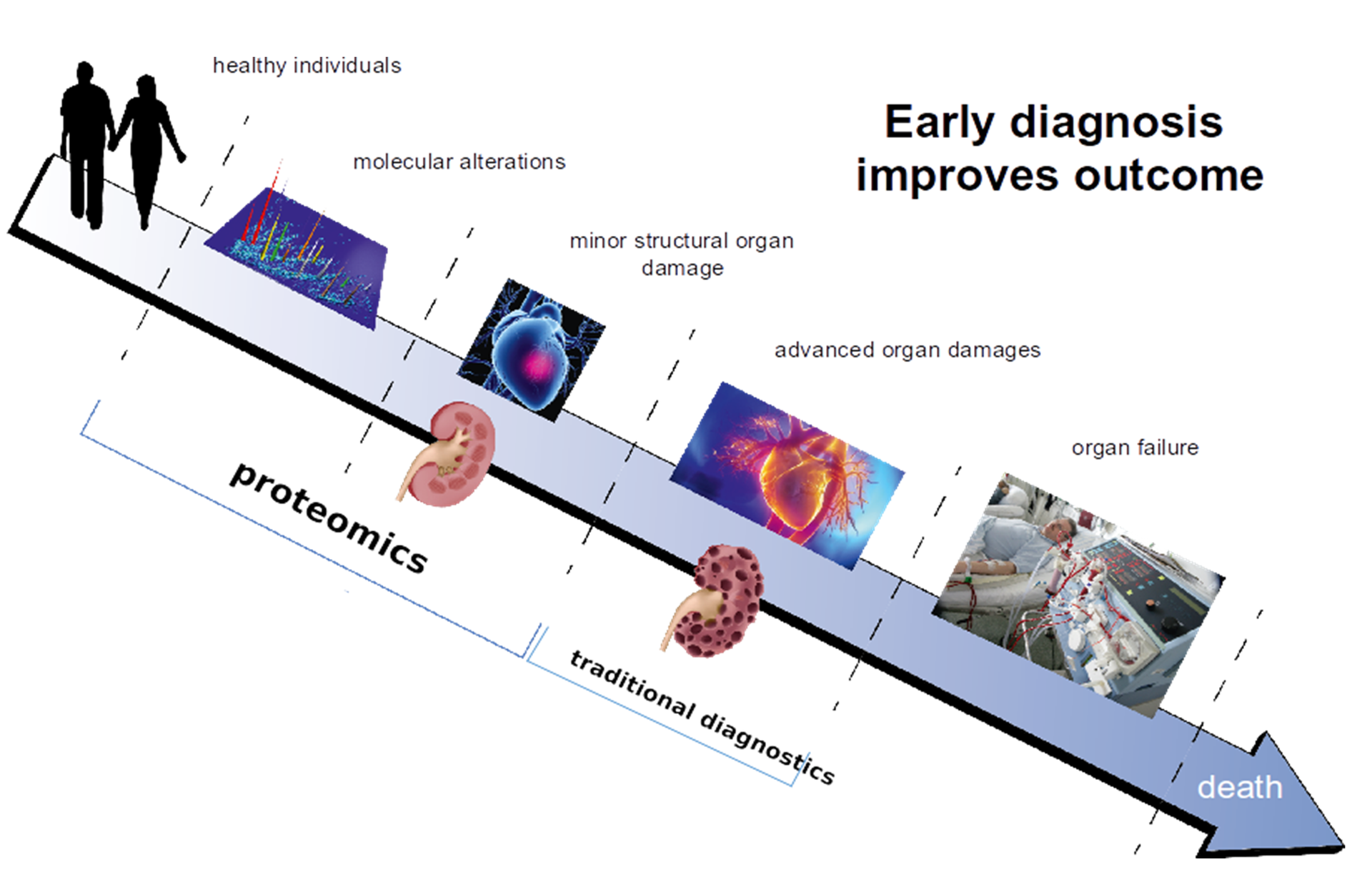

Figure 1: Early diagnosis and/or prognosis of diseases improves chances for a better outcome for the patient. The initiation of molecular processes that result in (chronic) diseases can be detected based on molecular changes, using proteomic technologies, prior to advanced organ damage. This could allow earlier intervention where drugs are most effective (Stepczynska et al.).

Diagnosis and Prognosis of CKD

The urinary peptides-based classifier CKD273 is a general classifier for the diagnosis of all CKD types. It was developed in 2010 by Good et al. 1. The rational was to identify biomarkers associated with CKD in general and enable the early detection of molecular changes that predict the development or progression of CKD. In the above study, 273 urinary peptides were identified that significantly differed between CKD and healthy controls. The first validation of the CKD273 using 144 samples showed a sensitivity of 85% and specificity of 100% with an area under the curve (AUC) of 0.96 for the diagnosis of CKD. To establish an added value in patient management, CKD273 was assessed in several studies2-14. A graphic depiction of the studies published to date using CKD273 is presented in Figure 2.

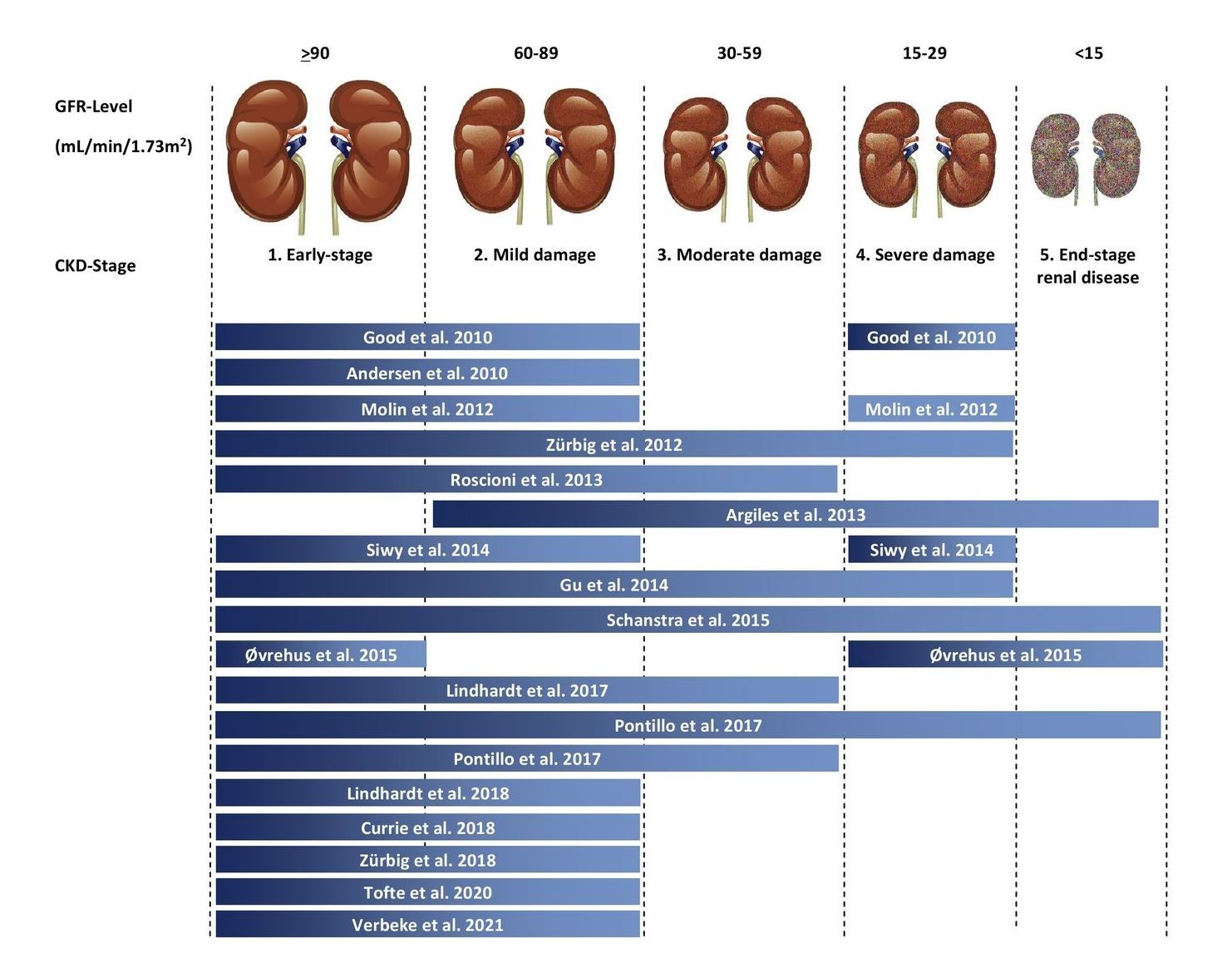

Figure 2: Graphical distribution of the studies evaluating the performance of the CKD273-classifier in the diagnosis and prognosis of CKD according to disease stage (modified from Critselis et al.).

Characteristics of CKD273 classifier:

  • is validated in independent multicentre cohorts [1,7,13] (Figure 3A)
  • is validated in longitudinal cohorts [12,14]
  • shows better results than currently used biomarkers [10,12,14] (Figure 3B)
  • can predict endpoints of CKD [3,10,11]
  • is validated concerning its stability, intra- and intermediate precision, reproducibility, and interference [1,15]
  • shows treatment effects [2,5,6] (Figure 3C)
  • is used in an interventional trial (PRIORITY) [16,17] (Figure 3D)
  • is associated with mortality [18]
  • attains high evidence levels [19]
  • shows cost-effectiveness compared to urinary albumin excretion [20] (Figure 3E)
  • is used for pilot studies with pharmaceutical companies
  • got “letter of support” from American Food and Drug Administration (FDA)

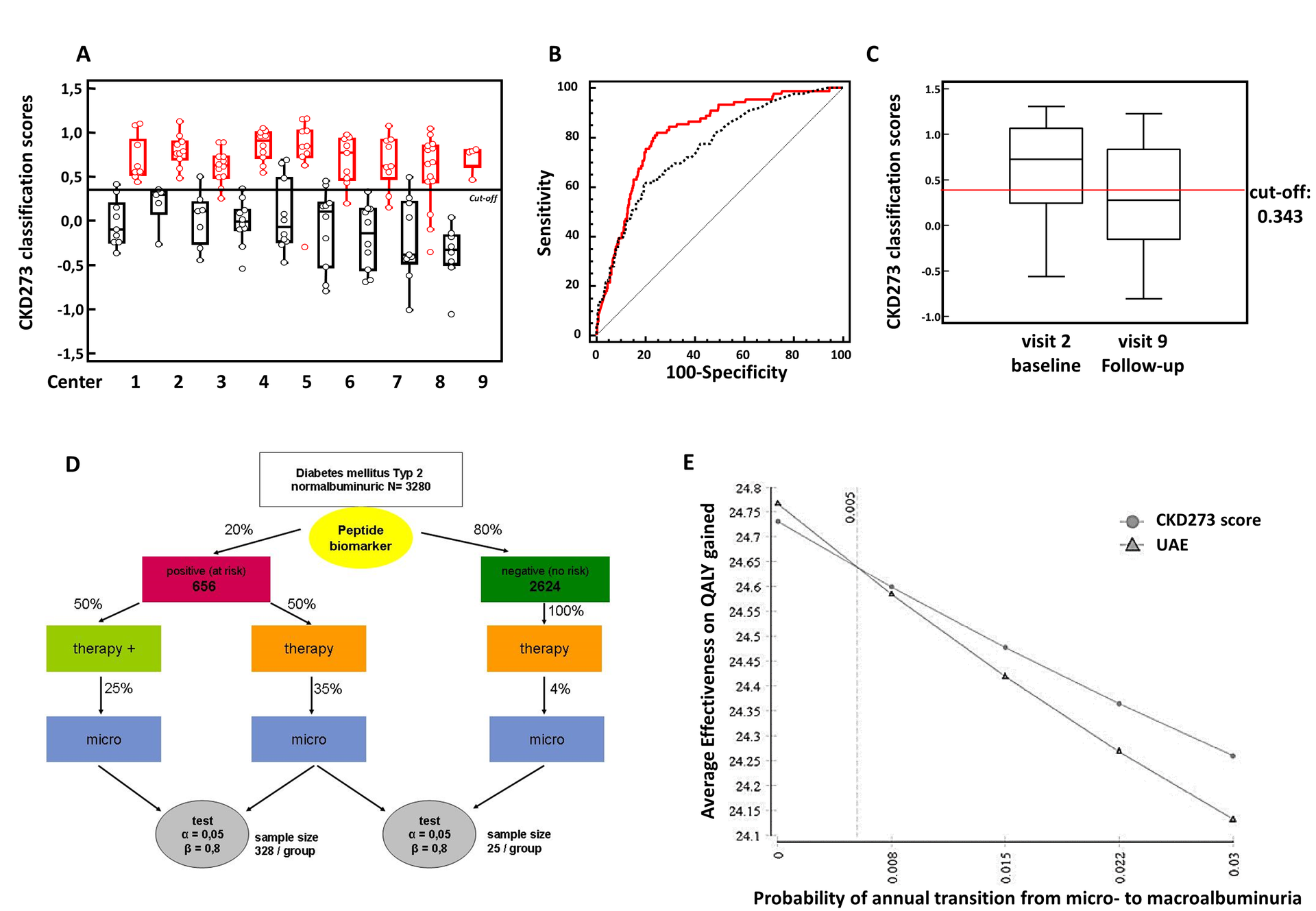

Figure 3: The CKD273 highlights. A. validation of the CKD273 in nine independent cohorts shoved consistent high diagnostics accuracy with area under curve above (AUC) 0.95 (Siwy et al.). B. Comparison of CKD273 with clinical parameters with significant higher AUC for the CKD273 classifier (AUC=0.82, black line) than for albuminuria (AUC=0.76, red line) using patients with fast-progressing CKD (eGFR slope decline of >−5% per year). C. The classification results of microalbuminuric patients before (visit 2) and after two years (visit 9) treatment with 200 mg Irbesartan with significant (p=0.024) decline of classification scores after Irbesartan treatment indicating an improvement of kidney phisiology (Andersen et al.). D. Interventional study in which CKD273 is used for the patient stratification and participants with a high-risc CKD273 score are included in the randomised intervention study with active drug or placebo in addition to standard care. E. One-way sensitivity analyses for the cost-effectiveness from an European prospective of screaning T2D patients using CKD273 as compared to screening annually with UAE over 40-year time frame that indicates that with increasing probability of annual CKD progression, the CKD273 screening was associated with a greater gain in QALYs in diabetic patients (Critselis at al.).

Non-invasive discrimination of various types of CKD

Currently, our CE-MS technology is capable of detecting over 80% of all CKDs using CKD273 classifier:

  • Diabetic nephropathy (DN)
  • Focal-segmental glomerulosclerosis (FSGS)
  • IgA nephropathy (IgAN)
  • Minimal-change disease (MCD)
  • Vasculitis
  • Lupus nephritis (LN)
  • Membranous nephropathy (MN)


In addition, the urinary proteome analysis clearly differentiated various types of CKD. We could also define specific urinary peptide classifiers19 which are composites multiple peptides specific for a single CKD type. These classifiers enable a differential diagnosis of certain types of CKD (Figure 4). They may also serve as an excellent basis for the assessment of the different types of CKD, to understand molecular pathophysiology and to identify the best-suited therapeutic targets. In contrast to kidney biopsy, urinary proteome analysis offers the possibility of being applied early in the course of the disease when the benefit of intervention is optimal and of being repeatable without any risk for the patient and, thus, can be used to monitor progression of disease and/or treatment response.

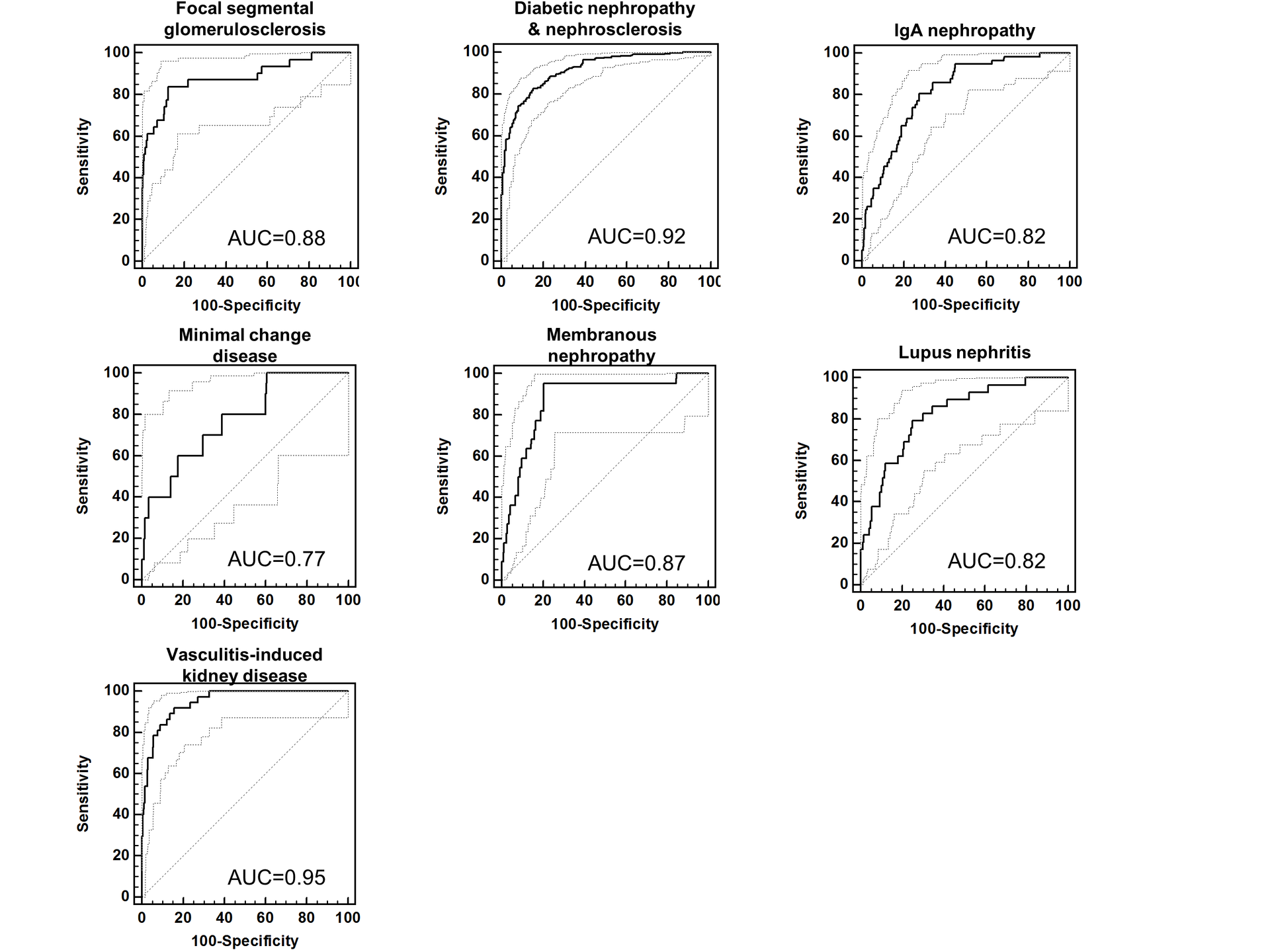

Figure 4: Discrimination of the individual CKD types from all others CKD types based on 474 samples resulted in high accuracy with AUC-values ≥ 0.77 (Siwy et al.).


For more information, please click here.


REFERENCES:

  1. Good DM et al. Mol Cell Proteomics 2010; 9: 2424-2437
  2. Andersen S et al. BMC Nephrol. 2010; 11: 29
  3. Argiles A et al. PLoS One 2013; 8: e62837
  4. Gu YM et al. Nephrology Dialysis Transplantation 2014; 29: 2260-2268
  5. Lindhardt M et al. Nephrol Dial Transplant. 2016; 32(11): 1866-1873
  6. Lindhardt M et al. Nephrol Dial Transplant. 2018; 33(2): 296-303
  7. Molin L et al. J Proteomics 2012; 75: 5888-5897
  8. Ovrehus MA et al. Clin Proteomics 2015; 12(1): 21
  9. Pontillo C et al. Nephrol Dial Transplant. 2017; 32(9): 1510-1516
  10. Pontillo C et al. Kidney Int Rep. 2017; 2(6): 1066-1075
  11. Roscioni SS et al. Diabetologia 2012; 56: 259-267
  12. Schanstra JP et al. J Am Soc Nephrol. 2015; 26: 1999-2010
  13. Siwy J et al. Nephrol Dial Transplant. 2014; 29: 1563-1570
  14. Zürbig P et al. Diabetes 2012; 61: 3304-3313
  15. Mischak H et al. Clin Biochem 2013; 46: 432-443
  16. Lindhardt M et al. BMJ Open 2016; 6: e010310
  17. Tofte N et al. Diabet Med. 2018; 35(10): 1375-1382
  18. Currie GE et al. Cardiovasc Diabetol. 2018; 17(1): 50
  19. Critselis E et al. Nephrol Dial Transplant. 2014; 31: 249-254
  20. Critselis E et al. Nephrol Dial Transplant 2018; 33(3): 441-449
  21. Siwy J et al. Nephrol Dial Transplant 2017; 33(12): 2079-2089
  22. Rodríguez-Ortiz ME et al. Sci Rep. 2018;8(1): 15940
  23. Zürbig P et al. Diabetes Care. 2019;42(1): e4-e5
  24. Verbeke F et al. Nephrol Dial Transplant. 2021;36(5): 811-818
  25. Tofte N et al. Lancet Diabetes Endocrinol. 2020;8(4): 301-312
  26. Rudnicki M et al. Nephrol Dial Transplant. 2021;37(1): 42-52
  27. Catanese L et al. Proteomes. 2021;9(3): 32
  28. Mavrogeorgis E et al. Toxins (Basel) 2021;14(1): 10
  29. Peters B et al. Nephrol Dial Transplant 2023;38(12): 2826-2834
  30. Mavrogeorgis E et al. Nephrol Dial Transplant 2024;39(3): 453-462
back

Polycystic kidney disease (PKD) is an inherited disorder characterised by cyst formation and enlargement primary in the kidney. PKD may impair kidney function and eventually cause kidney failure (Figure 1).

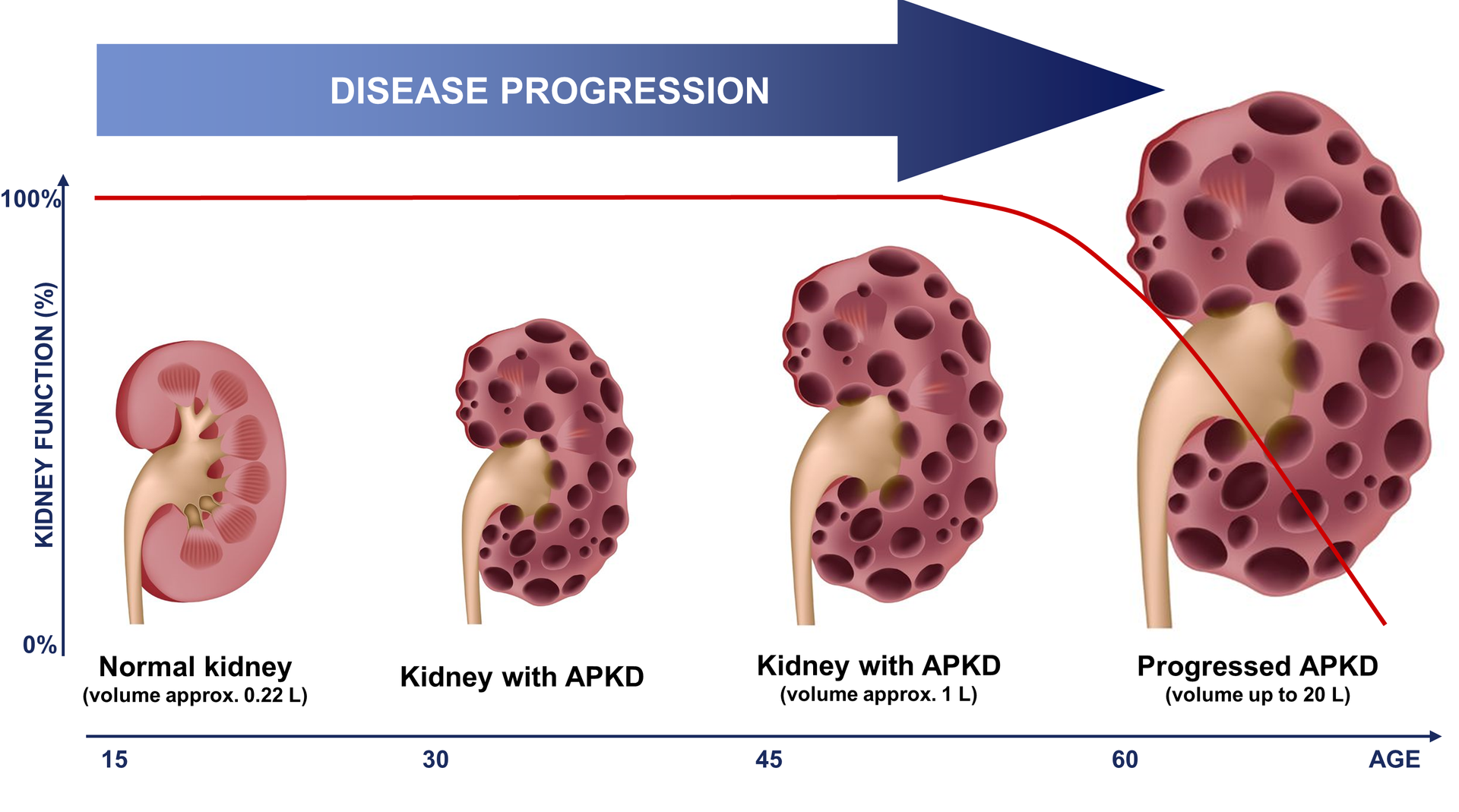

Figure 1: Kidney disease progression in autosomal policystic kidney disease (ADPKD).


Autosomal dominant polycystic kidney disease (ADPKD) is the most common hereditary renal disease, with an incidence between 1:400 and 1:1000 live births. 2 and accounts for 7–10% of all patients requiring renal replacement therapy. Therefore, an early and high accurate diagnosis is needed. The diagnosis of ADPKD is usually based on the observation of kidney cysts by ultrasound in patients with positive family history for ADPKD. However, ultrasound imaging has limited sensitivity in children and young adults, before the age of 30 years. Furthermore molecular diagnosis by genetic testing has been hampered by the genetic complexity of ADPKD, and only 65% of ADPKD patients exhibit definitive pathogenic (i.e. truncating) mutations. On the other hand, the biopsy in human ADPKD with preserved kidney function is contraindicated, because renal tissue is rarely available. Proteomic analysis of urine offers a non-invasive means to simultaneously detect changes in the expression and processing of multiple proteins. The urinary peptide based classifier shows high diagnostics accuracy (Figure 2A) and also a correlation (Figure 2B) to the height adjusted total kidney volume (htTKV)1;2 that has been considered the best prognostic marker in ADPKD. However, accurate determination of htTKV is time-consuming, requires quantitative imaging algorithms and is not universally accessible. In addition, monitoring response to therapy by TKV requires relatively long follow-up times to allow for accurate determination of TKV changes over time.

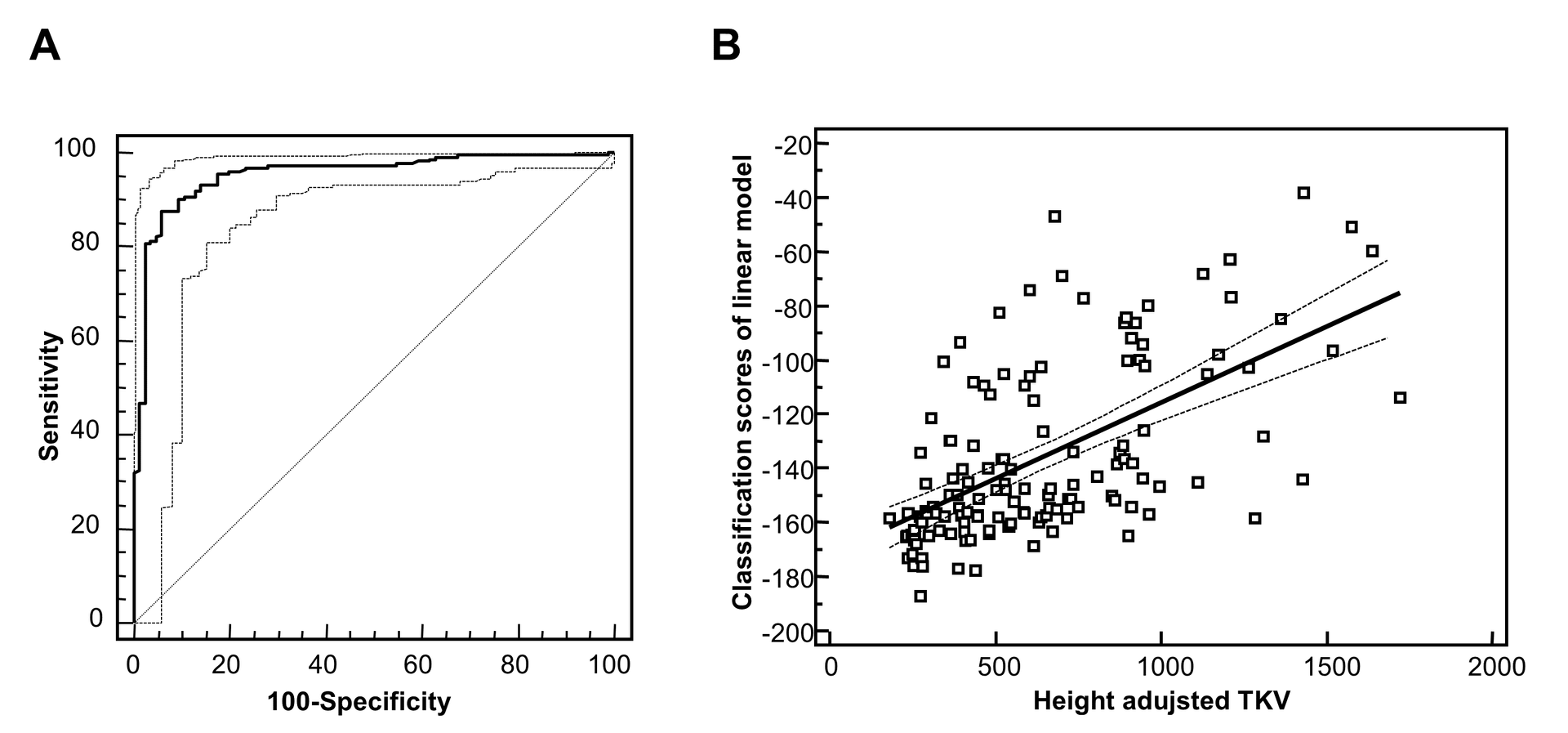

Figure 2: Urinary peptides in ADPKD. A.Diagnostics accuracy of the urinary peptide based classifier for ADPKD patients and healthy control with area under the curve (AUC) of 0.95. B. Correlation analysis of the urinary peptide classifier with high adjusted total kidney voulme (TKV) resulted in R=0.59 (Kistler et al.).


Moreover, urinary peptidomic biomarkers reliably predict progression to end stage renal disease (ESRD) in ADPKD patients based on a single baseline urine sample 3. The urinary peptide based classifier allows stratification of ADPKD patients according to their risk to develop ESRD within the next 10–13 years (Figure 3).

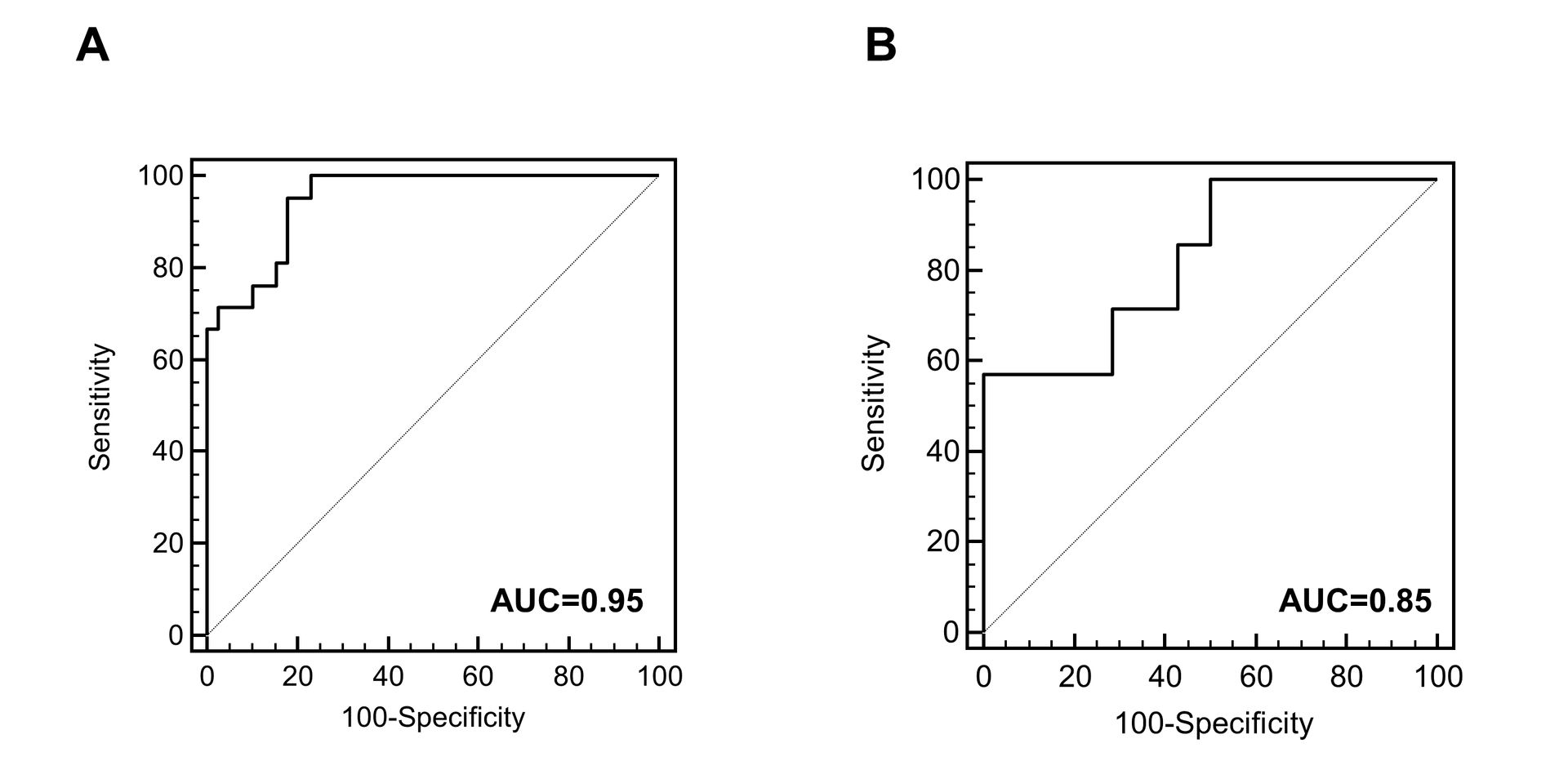

Figure 3: Receiver operating characteristic (ROC) curves of the biomarker-based prognostic model to discriminate patients progressing to end stage kidney disease (ESRD) during follow-up from those with stable disease in (A) the development cohort, consisting of 21 ESRD patients and 39 controls used to generate the model after total cross-validation, and (B) validation cohort, consisting of 7 ESRD patients and 14 controls (Pejchinovski et al.).



REFERENCES:

  1. Kistler AD et al. Kidney Int 2009; 76: 89-96
  2. Kistler AD et al. PLoS One 2013; 8: e53016
  3. Pejchinovski M et al. Nephrology Dialysis Transplantation 2016; 31: 22
  4. Liu Y et al. Sci Rep. 2018; 8(1): 5584
back
